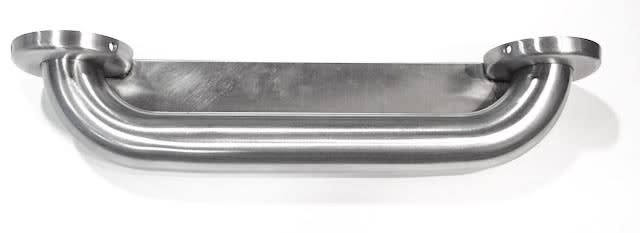

This 30" security / anti-ligature grab bar is fabricated in accordance with ADA specifications and is fully enclosed, thereby eliminating attach points. The grab bar is fabricated from 18 gauge, 1-1/2" diameter stainless steel tubing with a #4 satin finish. The closure plate is fabricated from 11 gauge stainless steel plate with a #4 satin finish and is fully welded to the inside of the grab bar. The grab bar mounts to a tenon plate with stainless steel set screws, which are supplied. Fasteners for the tenon plate will vary with application and are not included.
